Contents
Annual Production Capacity
Annual Steel Making Capacity
Steel Plates
Steel Plates
Steel Plates

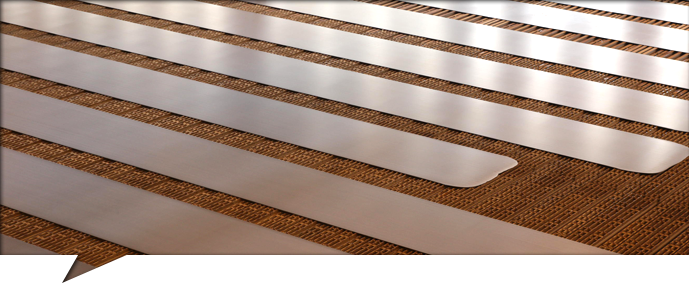

Steel Plates means thick steel sheet. It is usually 6mm thick and used for shipbuilding. It is widely used for bridge construction and various industrial machinery. Dongkuk Steel gained classification standard from a classification society of ten developed countries including Japan and the United States. The steel plates are widely used for shipbuilding, general structure, welding construction, boiler and pressure container, machinery structure according to the material.
Types and Use
Ship Building
Most of steel plates made in the country is used for ship building. Dongkuk Steel produces ship classification general steel and high strength steel with the certificate gained for the shipbuilding from ten countries’ classification societies. Steel plates are mainly used in tankers, cargo ship, container ship, LPG and LNG vessels, and offshore structures. The Improvement and diversification in product’s quality are required according to the diversification of ships.
| Steel | Classification society |
|---|---|
| Ship classification general steel : A,B,D,E. Ship classification High Strengthen steel : AH32, DH32, AH36, DH36, EH32, EH36, AH40, DH40, EH40 |
KR, NK, ABS, GL, LR, DNV, RINA, BV, CCS, RS |
Offshore plant
The shipping / offshore mooring steel pipe and steel sheet are used for Resources (Oil & Gas) Exploration, development, drilling, production, storage and transportation.
| Standard | Symbol | Third party certificate authority |
|---|---|---|
| EN-10225 | S355G2+N | ABS, DNV |
| S355G3+N | ABS, DNV | |
| S355G5+M | ABS, DNV | |
| S355G6+M | ABS, DNV | |
| S355G7+M | ABS, DNV | |
| S355G8+M | ABS, DNV | |
| S355G9+M | ABS, DNV | |
| S355G10+M | ABS, DNV | |
| S420G1+M | ABS, DNV | |
| S420G2+M | ABS, DNV | |
| S460G1+M | ABS | |
| S460G2+M | ABS | |
| Norsok M-120 | Y05 | DNV |
| Y20 | DNV | |
| Y30 | DNV | |
| Y40 | DNV | |
| API | API 2W-50 | ABS, DNV, BV |
| API 2W-60 | ABS, DNV | |
| API 2H-42 | - | |
| API 2H-50 | - | |
| DNV OS B101 | A/D/E420, DW/EW420 | DNV |
| Total | S355KT/KL+20 | - |
| S355KT/KL0 | - | |
| S355KT/KL-20 | - | |
| S355KT/KL-40 | - |
For General and Welded Structures
The steel plates are used for bridge construction, building, and steel structures. The demand for this steel plate is increasing according to the trend of larger and higher buildings.
| Standard number | Type and grade |
|---|---|
| KS D3503/JIS G3101 | SS400, SS490 |
| KS D3515, JIS G3106 | SM400A, SM400B, SM400C, SM490A, SM490B, SM490C, SM490YA, SM490YB, SM520B, SM520C, SM570 |
| KS D3868 | HSB500, HSB500L, HSB600, HSB600L |
| JIS G 3136 | SN400A, SN400B, SN400C, SN490B, SN490C |
| ASTM | A36, A283, A572, A573, A709 |
| ASME | SA36, SA283, SA516 |
| BS 4360 | 43A, 50A, 50B, 50C |
| EN 10025 | S235JR, S235JO, S235J2, S275JR, S275JO, S275J2, S355JR, S355JO, S355J2, S275N, S275NL, S355N, S355NL, S275M, S275ML, S355M, S355ML |
| DIN 17100 | ST 44-2, ST 44-3, ST 52-3, ST 50-2 |
| CSA | 300W, 350W, 380W |
| AS 3678 | GR250, GR300, GR350, GR400 |
| BS 4360 | 40A, 40B, 40C, 40D, 43A, 43B, 43C, 43D, 50A, 50B, 50C, 50D |
For boilers and pressure vessels
According to development of energy industry, the demand for oil pipelines and oil well pipelines is increasing. Besides, the steel plates are used for pipes, structures, piles, boilers and heat exchangers.
| Standard number | Type and grade |
|---|---|
| ASTM/ASME | A285, A516 |
| JIS G 3103 | SB410, SB450, SB480 |
| JIS G 3115 | SPV235, SPV315, SPV355, SPV410 |
For machine structures
The steel plates are used for cars and molds for home appliances. Our steel plates are excellent in GCV machinability and the abrasion resistance. They are mainly used for manufacturing machinery.
| Standard number | Type and grade |
|---|---|
| KS D3752 | SM45C |
| JIS G4051 | S45C |
| SAE J 403 | 1045 |
